.Net单点登录详解 (SSO)
来源：程序员人生 发布时间：2014-12-15 08:48:36 阅读次数：2886次
最近做GXP(高校平台)的项目，由于里边有好多个子系统，例如有考试系统，评教系统，基础系统，新生入学系统，权限系统，如果每一个系统都有自己的独立的登录的界面，那末就会有能访问这5个系统的人就要记住5套用户名，密码。哇，好累啊，5套！在这个背景下提出了单点登录（SSO）。
先来讲说甚么是单点登录(SSO)，单点登录（Single Sign On），简称为 SSO，是目前比较流行的企业业务整合的解决方案之1。SSO的定义是在多个利用系统中，用户只需要登录1次就能够访问所有相互信任的利用系统。单点登录简单来讲，就1处登录，可以到处访问。
SSO的解决方案很多，比如收费的有UTrust、惠普灵动等，开源的有CAS、Smart SSO等，其中利用最为广泛的是CAS。但是因本人能力有限，没有做出cas在.net下的利用。所有这篇文章来介绍1下摹拟cas情势做的1个登录，请大家多多批评指正。

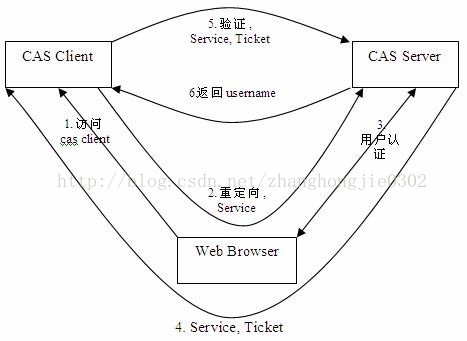

让我们来看看cas的工作原理！
当用户在地址栏中输入我们想访问的地址后，例如输入基础系统的url地址，基础系统的服务器会检测有无发过来票据（ST），如果没有，那末会跳转到认证中心服务器端，当发送到认证中心服务器端后，认证中心服务器端会检查有无有无发过来CooKie，如果没有，那末就会那末就会出现登录界面，让用户输入用户名，密码，然后回去数据库中进行验证，如果用户输入的正确，那末会生成1个票据(ST)和保存用户名的Cookie，票据（ST）中包括：要访问系统的URL，和进入该系统的唯1凭证。返回给阅读器，阅读器接受后，会保存Cookie，然后通过ST中的URL转到要访问系统的服务器，进入该服务器后，仍然后检测有无ST,现在又ST，那末他会拿着这个ST中的唯1凭证去认证中心服务器进行比对，看看该唯1凭证是否是认证中心服务器端生成的，如果是的话啊，那末就返回用户信息！并展现页面给用户！。

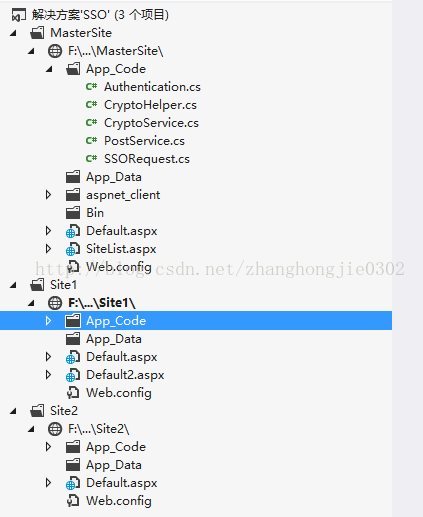

说了这么多，给大家看1个例子。先看1下这个例子的结构！
这个例子中有3个项目，分别为：MasterSite，site1，site2.MasterSite 摹拟认证中心服务器，site1摹拟其中的1个利用，site2摹拟另外一个利用!
让我们看1下主要的代码！
验证服务器真个登录页的后台代码。首先检查发过来的要求中包括的信息都有甚么，
using System;
using System.Data;
using System.Configuration;
using System.Web;
using System.Web.Security;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Web.UI.WebControls.WebParts;
using System.Web.UI.HtmlControls;
using System.Text;
public partial class _Default : System.Web.UI.Page
{
/// <summary>
///
服务器真个登录页面的类
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
protected void Page_Load(object sender, EventArgs e)
{
if (!IsPostBack)
{
SSORequest ssoRequest = new SSORequest();
#region 验证 Post 过来的参数
//--------------------------------
// 要求注销
if (!string.IsNullOrEmpty(Request["Logout"]))
{
Authentication.Logout();
return;
}
//--------------------------------
// 各独立站点标识
if (string.IsNullOrEmpty(Request["IASID"]))
{
return;
}
else
{
ssoRequest.IASID = Request["IASID"];
}
//--------------------------------
// 时间戳
if (string.IsNullOrEmpty(Request["TimeStamp"]))
{
return;
}
else
{
ssoRequest.TimeStamp = Request["TimeStamp"];
}
//--------------------------------
// 各独立站点的访问地址
if (string.IsNullOrEmpty(Request["AppUrl"]))
{
return;
}
else
{
ssoRequest.AppUrl = Request["AppUrl"];
}
//--------------------------------
// 各独立站点的 Token
if (string.IsNullOrEmpty(Request["Authenticator"]))
{
return;
}
else
{
ssoRequest.Authenticator = Request["Authenticator"];
}
ViewState["SSORequest"] = ssoRequest;
#endregion
//验证从分站发过来的Token
if (Authentication.ValidateAppToken(ssoRequest))
{
string userAccount = null;
// 验证用户之前是不是登录过
//验证 EAC 认证中心的 Cookie,验证通过时获得用户登录账号
if (Authentication.ValidateEACCookie(out userAccount))
{
ssoRequest.UserAccount = userAccount;
//创建认证中心发往各分站的 Token
if (Authentication.CreateEACToken(ssoRequest))
{
Post(ssoRequest);
}
}
else
{
return;
}
}
else
{
return;
}
}
}
//post要求
void Post(SSORequest ssoRequest)
{
PostService ps = new PostService();
ps.Url = ssoRequest.AppUrl;
ps.Add("UserAccount", ssoRequest.UserAccount);
ps.Add("IASID", ssoRequest.IASID);
ps.Add("TimeStamp", ssoRequest.TimeStamp);
ps.Add("AppUrl", ssoRequest.AppUrl);
ps.Add("Authenticator", ssoRequest.Authenticator);
ps.Post();
}
/// <summary>
/// 验证登录账号和密码是不是正确
/// </summary>
/// <param name="userName">登录账号</param>
/// <param name="userPwd">登录密码</param>
/// <returns></returns>
private bool ValidateUserInfo(string userName, string userPwd)
{
//从
数据库中读取,验证登录账号和密码
//略...
return true;
}
protected void Login1_Authenticate(object sender, AuthenticateEventArgs e)
{
if (string.IsNullOrEmpty(Login1.UserName) || string.IsNullOrEmpty(Login1.Password))
{
Page.RegisterClientScriptBlock("Add", "<script lanuage="javascript">alert('用户名密码不能为空！');</script>");
return;
}
else if (ValidateUserInfo(Login1.UserName, Login1.Password) == false)
{
Page.RegisterClientScriptBlock("Add", "<script lanuage="javascript">alert('用户名密码毛病！');</script>");
return;
}
else
{
//保存当前用户的用户名
Session["CurrUserName"] = Login1.UserName;
//设置过期时间 单位为分钟
Session.Timeout = 120;
SSORequest ssoRequest = ViewState["SSORequest"] as SSORequest;
// 如果不是从各分站 Post 过来的要求，则默许登录主站
if (ssoRequest == null)
{
FormsAuthentication.SetAuthCookie(Login1.UserName, false);
ssoRequest = new SSORequest();
//主站标识ID
ssoRequest.IASID = "00";
ssoRequest.AppUrl = "SiteList.aspx";
ssoRequest.TimeStamp = DateTime.Now.ToString("yyyy-MM-dd HH:mm");
ssoRequest.Authenticator = string.Empty;
Response.Redirect("SiteList.aspx");
}
ssoRequest.UserAccount = Login1.UserName;
//创建Token
if (Authentication.CreateEACToken(ssoRequest))
{
string expireTime = DateTime.Now.AddHours(3).ToString("yyyy-MM-dd HH:mm");
Authentication.CreatEACCookie(ssoRequest.UserAccount, ssoRequest.TimeStamp, expireTime);
Post(ssoRequest);
}
}
}
}
</pre><p></p><p> <span style="font-size:18px"> 该类主要是将要发送的要求封装起来成为1个类进行发送！</span></p><p><span style="font-size:18px"></span></p><pre name="code" class="html">using System;
using System.Data;
using System.Configuration;
using System.Web;
using System.Web.Security;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Web.UI.WebControls.WebParts;
using System.Web.UI.HtmlControls;
/// <summary>
/// SSORequest 该类主要是设置要求包,要求包中都包括哪些信息!
/// 继承MarshalByRefObject ,主要解决跨域访问的问题!
/// </summary>
[Serializable]
public class SSORequest : MarshalByRefObject
{
public string IASID; //各独立站点标识ID
public string TimeStamp; //时间戳
public string AppUrl; //各独立站点的访问地址
public string Authenticator; //各独立站点的 Token
public string UserAccount; //账号
public string Password; //密码
public string IPAddress; //IP地址
//为ssresponse对象做准备
public string ErrorDescription = "认证失败"; //用户认证通过,认证失败,包数据格式不正确,数据校验不正确
public int Result = ⑴;
public SSORequest()
{
}
/// <summary>
/// 获得当前页面上的SSORequest对象
/// </summary>
/// <param name="CurrentPage"></param>
/// <returns></returns>
public static SSORequest GetRequest(Page CurrentPage)
{
SSORequest request = new SSORequest();
request.IPAddress = CurrentPage.Request.UserHostAddress;
request.IASID = CurrentPage.Request["IASID"].ToString();// Request本身会Decode
request.UserAccount = CurrentPage.Request["UserAccount"].ToString();//this.Text
request.Password = CurrentPage.Request["Password"].ToString();
request.AppUrl = CurrentPage.Request["AppUrl"].ToString();
request.Authenticator = CurrentPage.Request["Authenticator"].ToString();
request.TimeStamp = CurrentPage.Request["TimeStamp"].ToString();
return request;
}
}
该类的主要作用是发送要求,或将遭到的要求进行处理,发后回送要求信息!
<span style="font-size:18px;">using System;
using System.Collections.Generic;
using System.Text;
using System.Web;
/// <summary>
/// 该类的主要作用是发送要求,
/// 或将遭到的要求进行处理,发后回送要求信息!
/// </summary>
public class PostService
{
private System.Collections.Specialized.NameValueCollection Inputs = new System.Collections.Specialized.NameValueCollection();
public string Url = "";
public string Method = "post";
public string FormName = "form1";
/// <summary>
/// 添加需要提交的名和值
/// </summary>
/// <param name="name"></param>
/// <param name="value"></param>
public void Add(string name, string value)
{
Inputs.Add(name, value);
}
/// <summary>
/// 以输出Html方式POST
/// </summary>
public void Post()
{
System.Web.HttpContext.Current.Response.Clear();
string html = string.Empty;
html += ("<html><head>");
html += (string.Format("</head><body onload="document.{0}.submit()">", FormName));
html += (string.Format("<form name="{0}" method="{1}" action="{2}" >", FormName, Method, Url));
try
{
for (int i = 0; i < Inputs.Keys.Count; i++)
{
html += (string.Format("<input name="{0}" type="hidden" value="{1}">", Inputs.Keys[i], Inputs[Inputs.Keys[i]]));
}
html += ("</form>");
html += ("</body></html>");
System.Web.HttpContext.Current.Response.Write(html);
System.Web.HttpContext.Current.Response.End();
}
catch (Exception e)
{
}
}
}</span>
安全验证类，主要对发送过来的票据进行验证！
<span style="font-size:18px;">using System;
using System.Data;
using System.Configuration;
using System.Web;
using System.Web.Security;
using System.Collections.Generic;
using System.Text;
/// <summary>
/// 安全验证类
/// </summary>
public class Authentication
{
static readonly string cookieName = "EACToken";
static readonly string hashSplitter = "|";
public Authentication()
{
}
public static string GetAppKey(int appID)
{
//string cmdText = @"select * from ";
return string.Empty;
}
public static string GetAppKey()
{
return "22362E7A9285DD53A0BBC2932F9733C505DC04EDBFE00D70";
}
public static string GetAppIV()
{
return "1E7FA9231E7FA923";
}
/// <summary>
/// 获得加密服务
/// </summary>
/// <returns></returns>
static CryptoService GetCryptoService()
{
string key = GetAppKey();
string IV = GetAppIV();
CryptoService cs = new CryptoService(key, IV);
return cs;
}
/// <summary>
/// 创建各分站发往认证中心的 Token
/// </summary>
/// <param name="ssoRequest"></param>
/// <returns></returns>
public static bool CreateAppToken(SSORequest ssoRequest)
{
string OriginalAuthenticator = ssoRequest.IASID + ssoRequest.TimeStamp + ssoRequest.AppUrl;
string AuthenticatorDigest = CryptoHelper.ComputeHashString(OriginalAuthenticator);
string sToEncrypt = OriginalAuthenticator + AuthenticatorDigest;
byte[] bToEncrypt = CryptoHelper.ConvertStringToByteArray(sToEncrypt);
CryptoService cs = GetCryptoService();
byte[] encrypted;
if (cs.Encrypt(bToEncrypt, out encrypted))
{
ssoRequest.Authenticator = CryptoHelper.ToBase64String(encrypted);
return true;
}
else
{
return false;
}
}
/// <summary>
/// 验证从各分站发送过来的 Token
/// </summary>
/// <param name="ssoRequest"></param>
/// <returns></returns>
public static bool ValidateAppToken(SSORequest ssoRequest)
{
string Authenticator = ssoRequest.Authenticator;
string OriginalAuthenticator = ssoRequest.IASID + ssoRequest.TimeStamp + ssoRequest.AppUrl;
string AuthenticatorDigest = CryptoHelper.ComputeHashString(OriginalAuthenticator);
string sToEncrypt = OriginalAuthenticator + AuthenticatorDigest;
byte[] bToEncrypt = CryptoHelper.ConvertStringToByteArray(sToEncrypt);
CryptoService cs = GetCryptoService();
byte[] encrypted;
if (cs.Encrypt(bToEncrypt, out encrypted))
{
return Authenticator == CryptoHelper.ToBase64String(encrypted);
}
else
{
return false;
}
}
/// <summary>
/// 创建认证中心发往各分站的 Token
/// </summary>
/// <param name="ssoRequest"></param>
/// <returns></returns>
public static bool CreateEACToken(SSORequest ssoRequest)
{
string OriginalAuthenticator = ssoRequest.UserAccount + ssoRequest.IASID + ssoRequest.TimeStamp + ssoRequest.AppUrl;
string AuthenticatorDigest = CryptoHelper.ComputeHashString(OriginalAuthenticator);
string sToEncrypt = OriginalAuthenticator + AuthenticatorDigest;
byte[] bToEncrypt = CryptoHelper.ConvertStringToByteArray(sToEncrypt);
CryptoService cs = GetCryptoService();
byte[] encrypted;
if (cs.Encrypt(bToEncrypt, out encrypted))
{
ssoRequest.Authenticator = CryptoHelper.ToBase64String(encrypted);
return true;
}
else
{
return false;
}
}
/// <summary>
/// 验证从认证中心发送过来的 Token
/// </summary>
/// <param name="ssoRequest"></param>
/// <returns></returns>
public static bool ValidateEACToken(SSORequest ssoRequest)
{
string Authenticator = ssoRequest.Authenticator;
string OriginalAuthenticator = ssoRequest.UserAccount + ssoRequest.IASID + ssoRequest.TimeStamp + ssoRequest.AppUrl;
string AuthenticatorDigest = CryptoHelper.ComputeHashString(OriginalAuthenticator);
string sToEncrypt = OriginalAuthenticator + AuthenticatorDigest;
byte[] bToEncrypt = CryptoHelper.ConvertStringToByteArray(sToEncrypt);
string EncryCurrentAuthenticator = string.Empty;
CryptoService cs = GetCryptoService();
byte[] encrypted;
if (cs.Encrypt(bToEncrypt, out encrypted))
{
EncryCurrentAuthenticator = CryptoHelper.ToBase64String(encrypted);
return Authenticator == EncryCurrentAuthenticator;
}
else
{
return false;
}
}
/// <summary>
/// 创建 EAC 认证中心的 Cookie
/// </summary>
/// <param name="userAccount"></param>
/// <param name="timeStamp"></param>
/// <param name="expireTime"></param>
/// <param name="cookieValue"></param>
/// <returns></returns>
public static bool CreatEACCookie(string userAccount, string timeStamp, string expireTime)
{
string plainText = "UserAccount=" + userAccount + ";TimeStamp=" + timeStamp + ";ExpireTime=" + expireTime;
plainText += hashSplitter + CryptoHelper.ComputeHashString(plainText);
CryptoService cs = GetCryptoService();
byte[] encrypted;
if (cs.Encrypt(CryptoHelper.ConvertStringToByteArray(plainText), out encrypted))
{
string cookieValue = CryptoHelper.ToBase64String(encrypted);
SetCookie(cookieValue);
return true;
}
else
{
return false;
}
}
/// <summary>
/// 验证 EAC 认证中心的 Cookie，验证通过时获得用户登录账号
/// </summary>
/// <param name="userAccount">输出用户登录账号</param>
/// <returns></returns>
public static bool ValidateEACCookie(out string userAccount)
{
userAccount = string.Empty;
try
{
string cookieValue = GetCookie().Value;
byte[] toDecrypt = CryptoHelper.FromBase64String(cookieValue);
CryptoService cs = GetCryptoService();
string decrypted = string.Empty;
if (cs.Decrypt(toDecrypt, out decrypted))
{
string[] arrTemp = decrypted.Split(Convert.ToChar(hashSplitter));
string plainText = arrTemp[0];
string hashedText = arrTemp[1];
userAccount = plainText.Split(Convert.ToChar(";"))[0].Split(Convert.ToChar("="))[1];
return hashedText.Replace(" ", string.Empty) == CryptoHelper.ComputeHashString(plainText);
}
else
{
return false;
}
}
catch (Exception e)
{
return false;
}
}
public static void Logout()
{
HttpContext.Current.Response.Cookies[cookieName].Expires = DateTime.Parse("1900⑴⑴");
HttpContext.Current.Response.Cookies[cookieName].Path = "/";
}
private static void SetCookie(string cookieValue)
{
HttpContext.Current.Response.Cookies[cookieName].Value = cookieValue;
HttpContext.Current.Response.Cookies[cookieName].Expires = DateTime.Now.AddHours(24);
HttpContext.Current.Response.Cookies[cookieName].Path = "/";
}
private static HttpCookie GetCookie()
{
HttpCookie cookie = HttpContext.Current.Request.Cookies["EACToken"];
return cookie;
}
}</span>
上边是主站中主要的类的代码，APP_CODE下边的其他两个类主要是进行数据加密用的，这里不再列出！下边看1下分站的代码，大部份的都和主站的代码1样，也包括1个SSORequest和1个PostServer还有另外3个类，下边看1下主页的后台代码
using System;
using System.Data;
using System.Configuration;
using System.Web;
using System.Web.Security;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Web.UI.WebControls.WebParts;
using System.Web.UI.HtmlControls;
using System.Text;
public partial class _Default : System.Web.UI.Page
{
protected void Page_Load(object sender, EventArgs e)
{
if (!IsPostBack)
{
#region SSO 部份代码
SSORequest ssoRequest = new SSORequest();
if (string.IsNullOrEmpty(Request["IASID"]))
{
ssoRequest.IASID = "01";
ssoRequest.TimeStamp = DateTime.Now.ToString("yyyy-MM-dd HH:mm");
ssoRequest.AppUrl = Request.Url.ToString();
Authentication.CreateAppToken(ssoRequest);
Post(ssoRequest);
}
else if (!string.IsNullOrEmpty(Request["IASID"])
&& !string.IsNullOrEmpty(Request["TimeStamp"])
&& !string.IsNullOrEmpty(Request["AppUrl"])
&& !string.IsNullOrEmpty(Request["UserAccount"])
&& !string.IsNullOrEmpty(Request["Authenticator"]))
{
ssoRequest.IASID = Request["IASID"];
ssoRequest.TimeStamp = Request["TimeStamp"];
ssoRequest.AppUrl = Request["AppUrl"];
ssoRequest.UserAccount = Request["UserAccount"];
ssoRequest.Authenticator = Request["Authenticator"];
if (Authentication.ValidateEACToken(ssoRequest))
{
//从
数据库中获得UserId
Session["CurrUserName"] = Request["UserAccount"];
Session.Timeout = 120;
FormsAuthentication.SetAuthCookie(Request["UserAccount"], false);
Response.Write(string.Format("{0},您好！欢迎来到site1, >> 访问<a href="http://localhost:6332/Site2/Default.aspx">site2</a>", ssoRequest.UserAccount));
}
}
ViewState["SSORequest"] = ssoRequest;
#endregion
}
}
void Post(SSORequest ssoRequest)
{
PostService ps = new PostService();
//认证中心(主站)地址
string EACUrl = "http://192.168.24.89:8085";
ps.Url = EACUrl;
//ps.Add("UserAccount", ssoRequest.UserAccount);
ps.Add("IASID", ssoRequest.IASID);
ps.Add("TimeStamp", ssoRequest.TimeStamp);
ps.Add("AppUrl", ssoRequest.AppUrl);
ps.Add("Authenticator", ssoRequest.Authenticator);
ps.Post();
}
//注销登录
protected void LinkButton2_Click(object sender, EventArgs e)
{
FormsAuthentication.SignOut();
SSORequest ssoRequest = new SSORequest();
ssoRequest.IASID = "01";
ssoRequest.TimeStamp = DateTime.Now.ToString("yyyy-MM-dd HH:mm");
ssoRequest.AppUrl = Request.Url.ToString();
Authentication.CreateAppToken(ssoRequest);
PostService ps = new PostService();
//认证中心(主站)地址
string EACUrl = "http://192.168.24.89:8085";
ps.Url = EACUrl;
ps.Add("IASID", ssoRequest.IASID);
ps.Add("TimeStamp", ssoRequest.TimeStamp);
ps.Add("AppUrl", ssoRequest.AppUrl);
ps.Add("Authenticator", ssoRequest.Authenticator);
ps.Add("Logout", "true");
ps.Post();
}
//返回主站
protected void LinkButton1_Click(object sender, EventArgs e)
{
if (Session["CurrUserName"] != null)
{
Response.Redirect("http://192.168.24.89:8085/MasterSite/SiteList.aspx");
}
}
}
可以看到有1个注销登录，他会清空主站的Cookie和分站的Cookie中的信息！
这里仅写了1些主要的类的代码，可以来这里下载DEMO。
在计算机发展的愈来愈快的时期，好多事情都要放到计算机中进行处理，那末系统也就会随之增多。所以单点登录也就会变得愈来愈重要！
生活不易，码农辛苦
如果您觉得本网站对您的学习有所帮助,可以手机扫描二维码进行捐赠
